18T3 DC Inverter
₨156,900.00
Availability: In Stock
Top Features
Cooling & Heating
Energy Efficient
Low Noise
Wide Temp Range
T3 Technology
Our ACs are equipped with advanced T3 Technology, ensuring powerful cooling even in extreme heat. Enjoy consistent performance and comfort, no matter the temperature outside.
Noise Control
Experience a quieter environment with our Noise Control feature. The AC operates with minimal sound, allowing you to sleep, work, or relax without disturbance.
Wide Range Temperature
Built to withstand diverse climates, our ACs operate efficiently in a wide range of temperatures. From scorching heat to cooler conditions, enjoy reliable cooling year-round.
Energy Efficient
Our ACs are designed to be Energy Efficient, reducing power consumption while delivering optimal cooling. Save on electricity bills without compromising comfort.
Techincal Specifications
Cooling
- Rated Cooling Capacity:
- Cooling Current:
- Power Input:
- EER:
- Max Cooling Power:
- Indoor Air Flow:
- 5173W / 17650 BTU（500-5500）
- 7.77A (0.6-8.6)
- 1676W（140-1900）
- 3.09 W/W（3.5-2.8）
- 887W
- 904 m³/h
General
- Power Supply:
- Refrigerant:
- Compressor Brand:
- Suitable Area:
- Operating Temp:
- Control Type:
- 198-242V~/50Hz/1P
- R410A (780g)
- GREE (Rotary)
- 15–30 m²
- Indoor: 16–32°C / Outdoor: 18–53°C
- T3 Inverter
Components
- Compressor:
- Indoor Fan Motor:
- Outdoor Fan Motor:
- Expansion Device:
- Condenser & Evaporator:
- GREE FTZ-AN125AFBA-A (Rotary)
- DC, 35W
- DC, 50W, 900 RPM
- Capillary Tube
- 2-row copper with aluminum fins
Heating
- Rated Heating Capacity:
- Heating Current:
- Power Input:
- COP:
- Max Heating Power:
- Indoor Air Flow:
- 5541W / 18905 BTU(600-5800）
- 7.78A (0.7-8.6）
- 1675W（160-1900）
- 3.31 W/W（3.7-3.0）
- 836W
- 926 m³/h
Installation
- Refrigerant Pipe:
- Max Pipe Length:
- Max Height Difference:
- Power Cable:
- I&O Connecting Cable:
- Φ12/Φ6 – 2.8m included
- 15m
- 7m
- 1.5mm² x 3 (1.7m)
- 4x1.5mm² (4.5m)
Product Dimentions

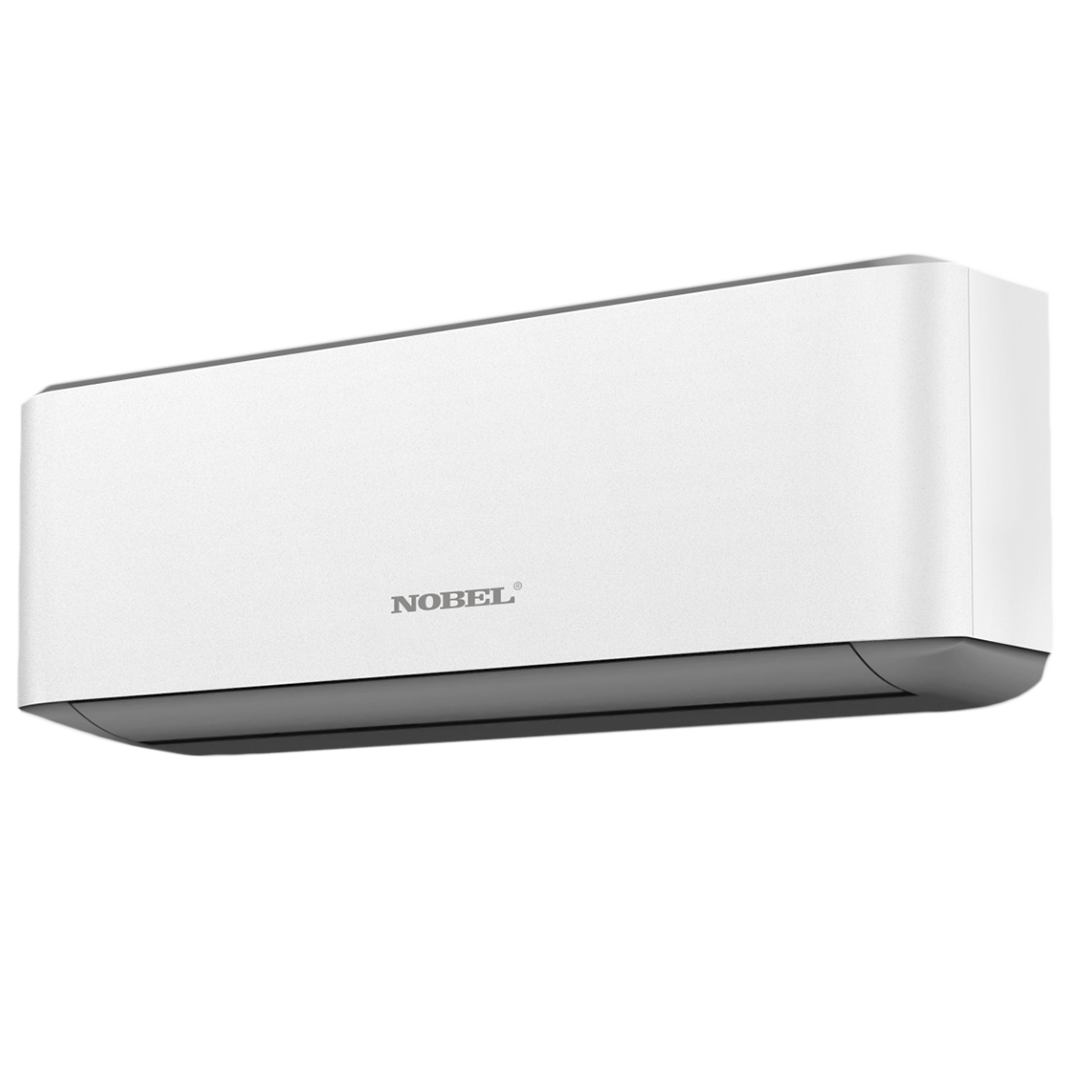

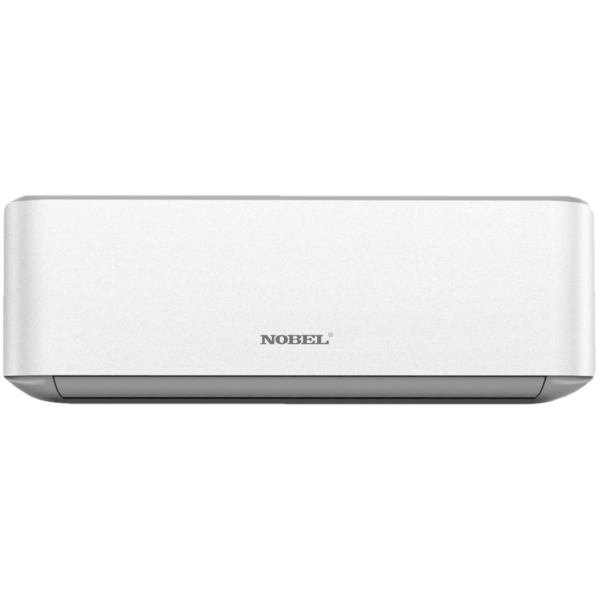

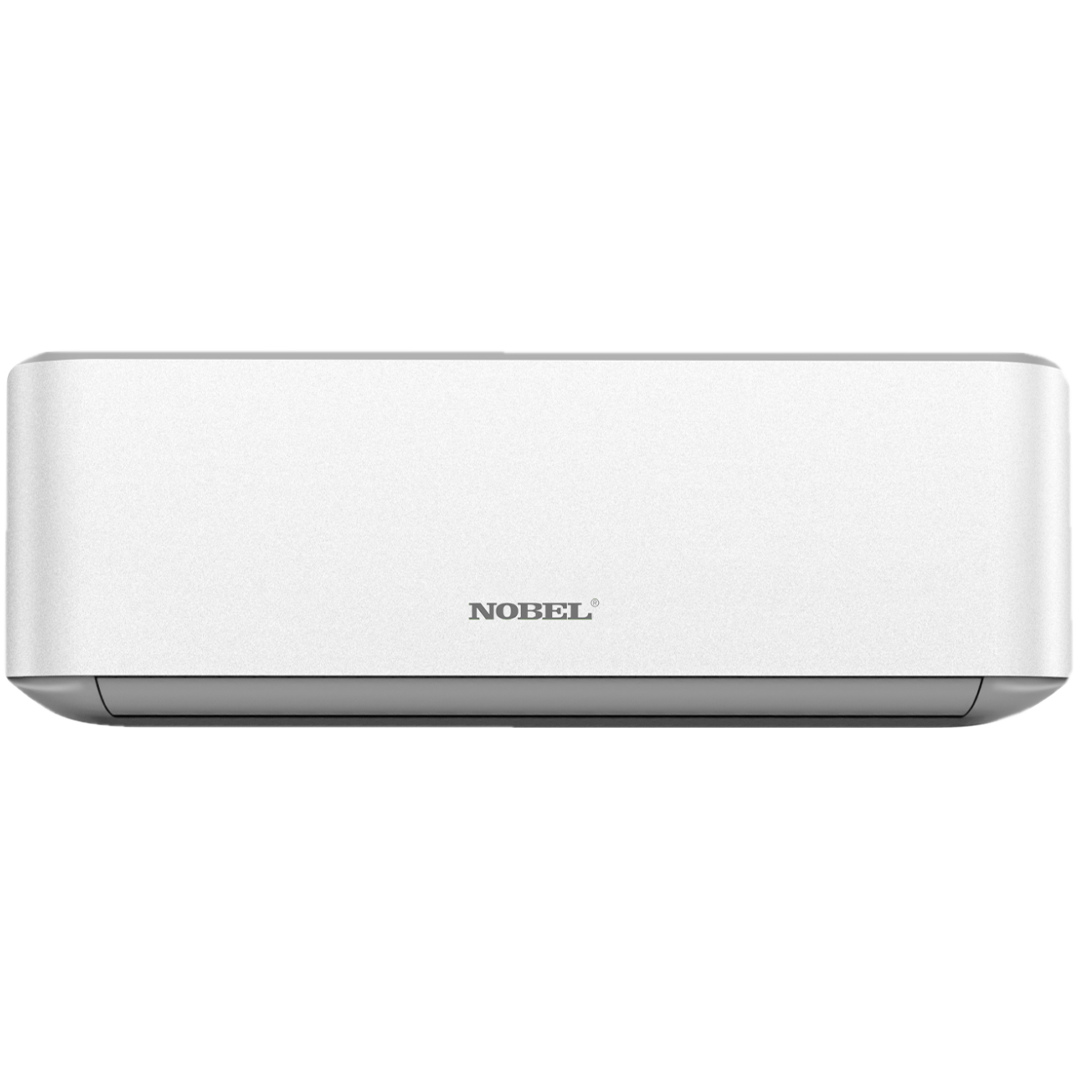

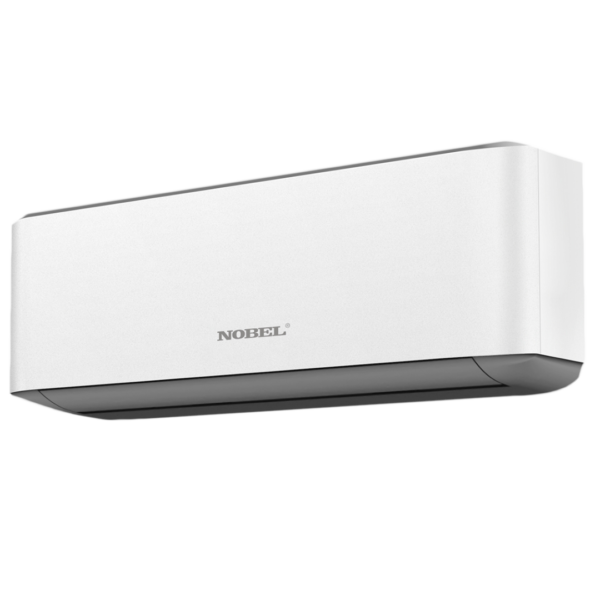

Indoor Unit
- Dimensions (mm):
- Net/Gross Weight:
- 950×315×222
- 11.3 / 13.5 kg

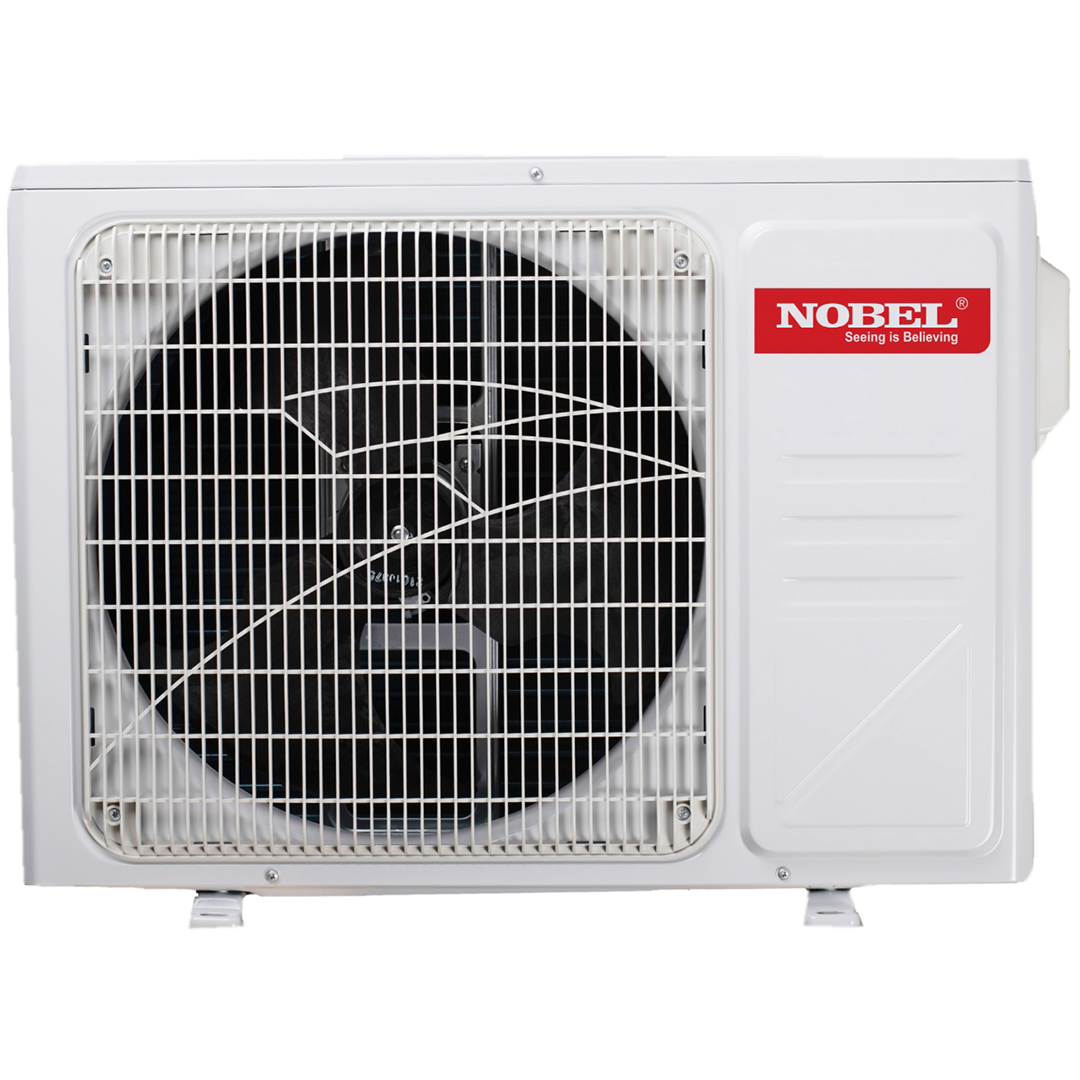

Outdoor Unit
- Dimensions (mm):
- Net/Gross Weight:
- 800×550×295
- 25.6 / 29.4 kg
